This template allows the refreshing of files in the defined FTP location at specified intervals and enables automatic updating of the audience list on Engage+.

Prerequisites:

• The audience CSV file from Databricks should be available in the FTP location.
• An audience list must be created in the Engage+ Audience Manager. The same name should be used when configuring the template. The audience name should not contain any 'whitespace.' For example, FTP Test is an invalid name; instead, you should use FTP_Test.

Configuring the template

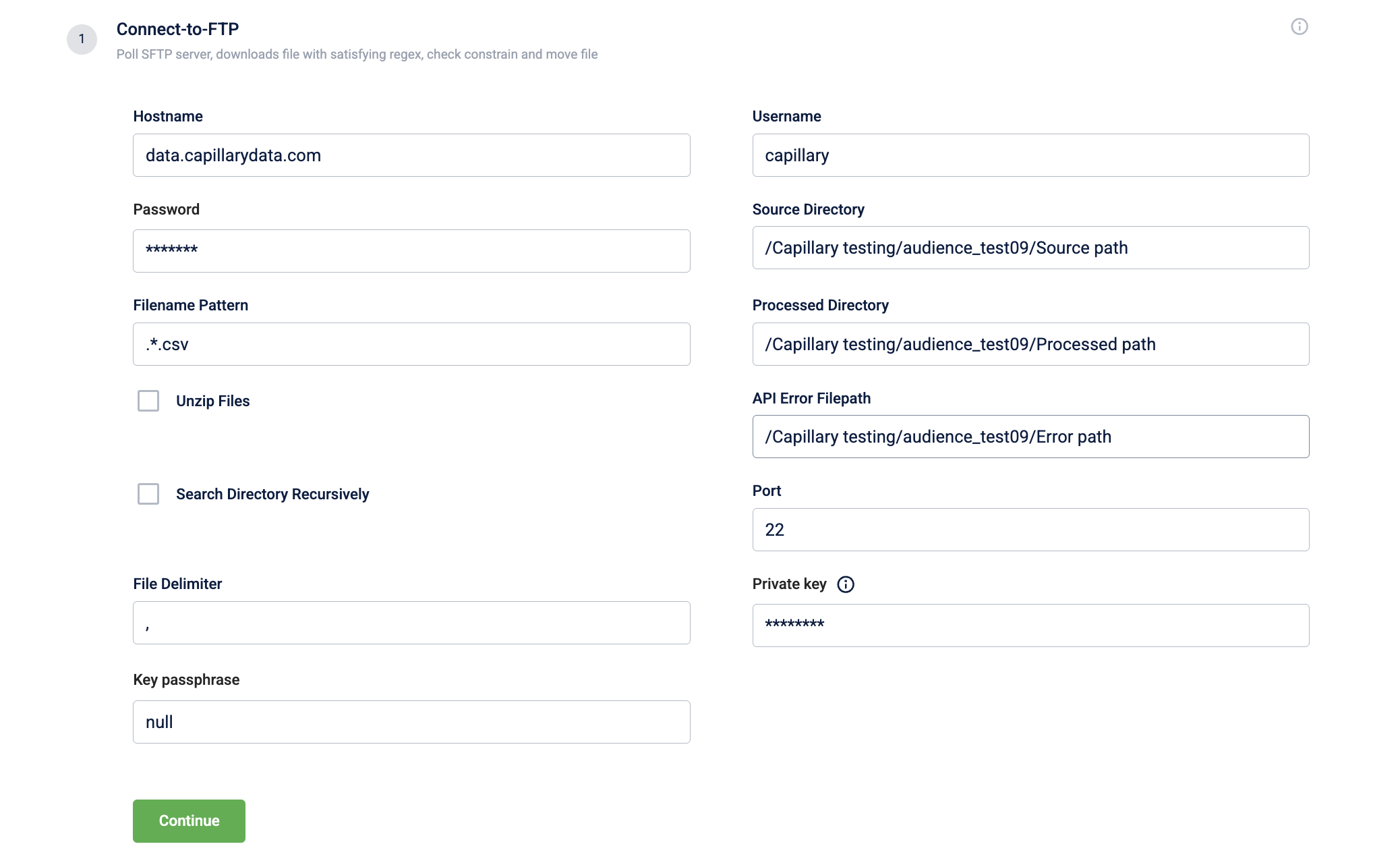

1. In the Connect-to-FTP Block, enter the FTP location where the file is present and the location for saving the processed file. For information on this block. Refer to the Connect to source documentation.

📘

Notes

• The source directory should be different for each audience list.
• It is recommended to keep the source FTP location name similar to the audience list name. For example, if the audience list name is INxyz, name the FTP file directory IN_xyz.
• If the audience list is large, it is recommended to compress the file and upload. Make sure that you enable the Unzip files option.

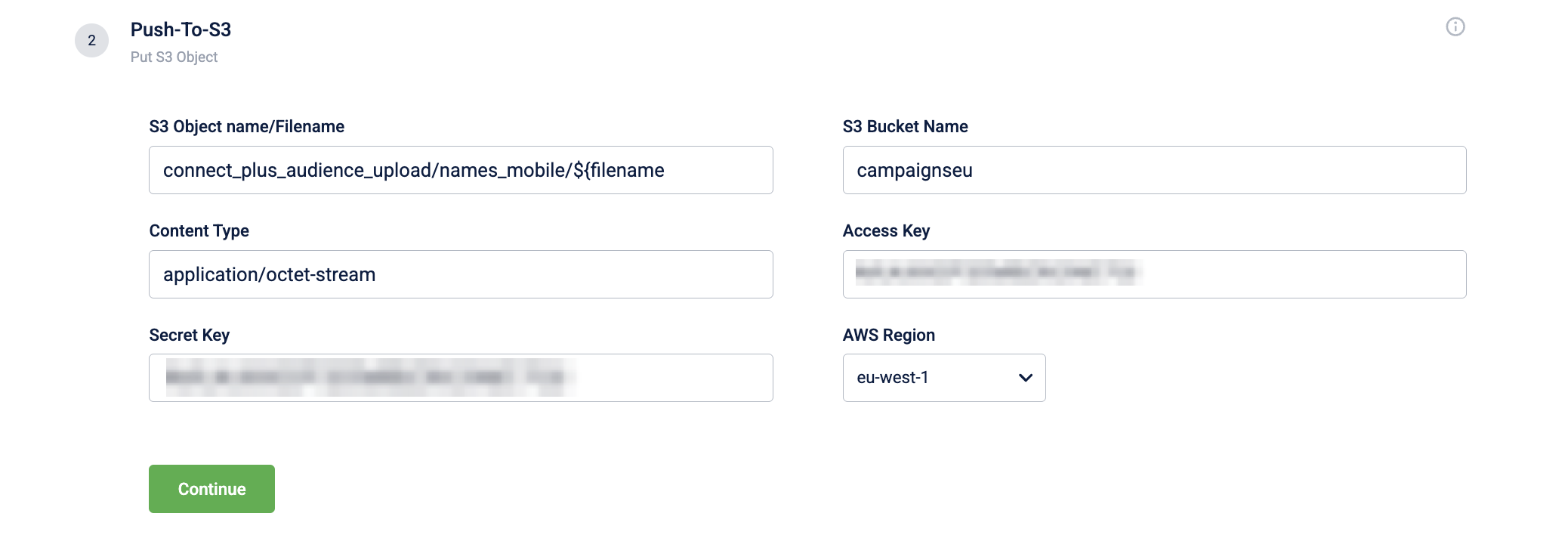

2. In the Push-To-S3, enter the S3 block details. For more information, refer to Push to S3 .

• S3 Object name/Filename - Enter the object name in the format connect_plus_audience_upload/YOUR_AUDIENCE_GROUPNAME/${filename}, where audience_Group_Name is the audience name used in the Engage+.

  For example: connect_plus_audience_upload/names_mobile/${filename}, where names_mobile is the audience name used in the Engage+

• S3 Bucket Name - Use the appropriate bucket name depending on the cluster region.

• AWS region - Enter the AWS region to which you are transferring the files.

Note: If you do not have information on the Access key, secret and AWS region, create a ticket to the Product Support team.

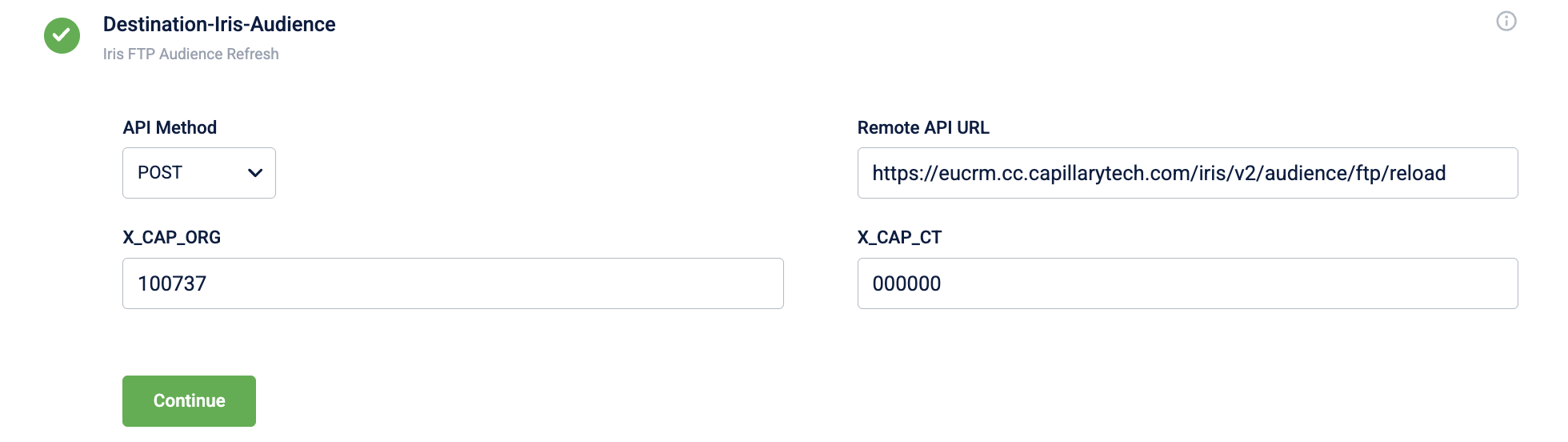

3. In the Destination-Iris-Audience block, enter the API endpoint details. This API enables refreshing and updating the audience list as per the updated file in the FTP. The API used isiris/v2/audience/ftp/reload. Enter the details as follows:

   • API Method - POST

   • Remote API URL - {host_url}/iris/v2/audience/ftp/reload. The host URL is cluster-based.
     For example, https://eu.api.capillarytech.com/iris/v2/audience/ftp/reload.
     Refer to table below for the appropriate URL based on your cluster:

     Cluster	Remote API URL
     EUCRM / APAC	https://eucrm.cc.capillarytech.com/iris/v2/audience/ftp/reload
     INCRM / APAC	https://incrm.cc.capillarytech.com/iris/v2/audience/ftp/reload
     ASIACRM / APAC2	https://sgcrm.cc.capillarytech.com/iris/v2/audience/ftp/reload
     USCRM	https://uscrm.cc.capillarytech.com/iris/v2/audience/ftp/reload

   • X_CAP_ORG - Organisation ID

   • X_CAP_CT - Capilary API authentication token. The token is not mandatory, and you can enter any random string in this field if you do not have token.

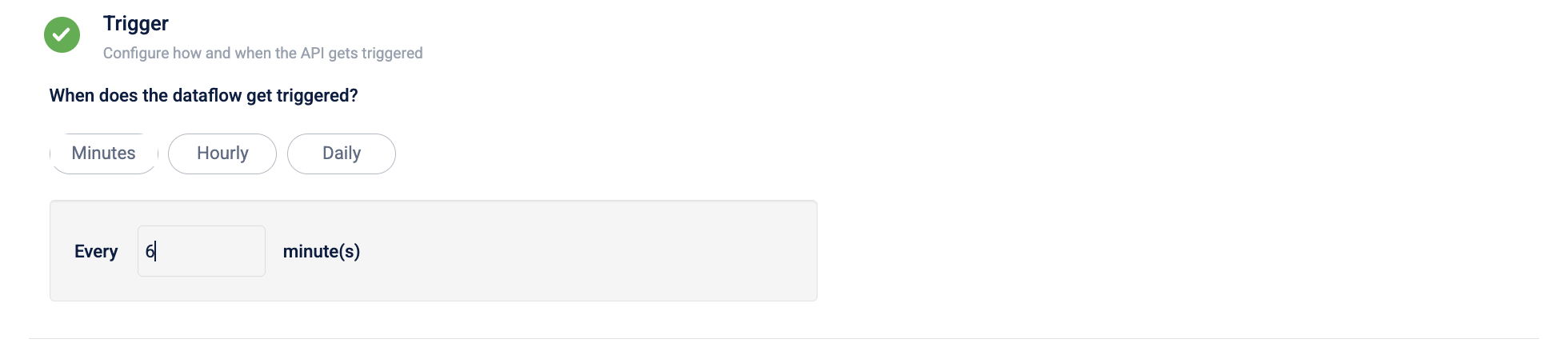

4. In the Trigger section block, define the duration at which the system should check the FTP location for the new file and update the audience list. For information on how to define the dataflow trigger duration, refer to the documentation on scheduling Trigger.

5. Select save and continue.
