User Documentation

Modifying a Dataflow Using AI Assistant

Suggest Edits

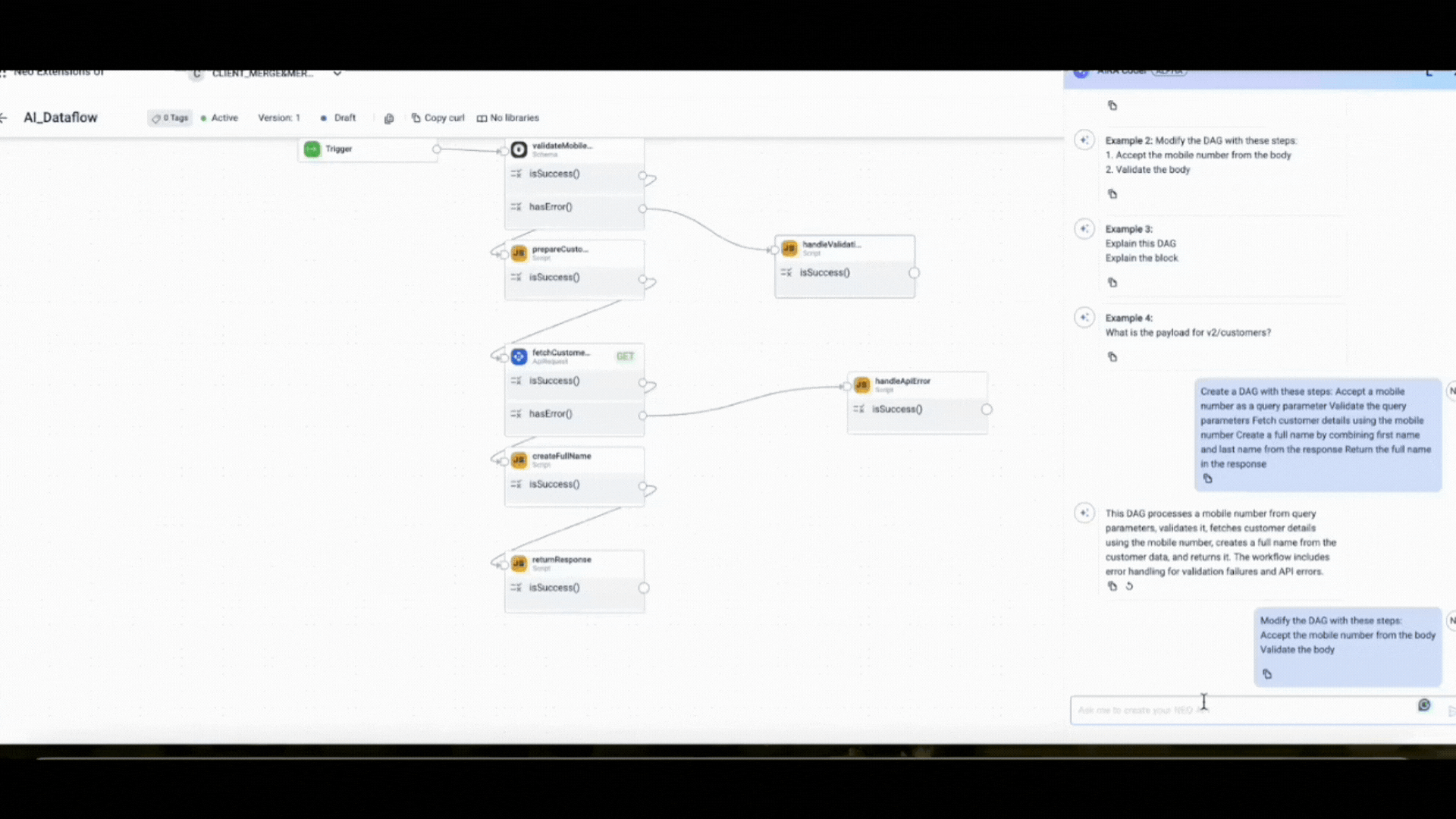

You can use Neo’s AI assistant (AIRA) not only to create new dataflows but also to modify existing ones. This includes:

  • Adding or removing blocks
  • Updating logic in script blocks
  • Changing validation conditions
  • Reconfiguring block properties

Example Use Case: Modify the ValidateParameters Block

Prompt:

Modify the ValidateParameters block of the dataflow to:
1. Add queryParams as an object
2. Include FFN, Fname, and lname inside the queryParams object

Example Prompt:

Modify the ValidateParameters block of the dataflow
1. To add queryParams  an object
2. Add FFN, Fname, lname inside the queryParams object.

Before the Update

import dao from "neo/dao";
import logger from "neo/logger";

const {
    getApiRequest
} = dao;

const script = {
    execute: () => {
        const queryParams = getApiRequest().queryParams;
        const ffn = queryParams.ffn;
        const fname = queryParams.fname;
        const lname = queryParams.lname;

        logger.info("Validating input parameters", { ffn, fname, lname });

        if (!ffn) {
            logger.error("Missing required parameter: ffn");
            return {
                isError: true,
                code: 400,
                message: "Missing required parameter: ffn",
                data: { error: "FFN is required" }
            };
        }

        if (!fname) {
            logger.error("Missing required parameter: fname");
            return {
                isError: true,
                code: 400,
                message: "Missing required parameter: fname",
                data: { error: "First name is required" }
            };
        }

        if (!lname) {
            logger.error("Missing required parameter: lname");
            return {
                isError: true,
                code: 400,
                message: "Missing required parameter: lname",
                data: { error: "Last name is required" }
            };
        }

        return {
            ffn: ffn,
            fname: fname,
            lname: lname,
            isValid: true
        };
    }
};

export {
    script as default
}

After the Update

import dao from "neo/dao";
import logger from "neo/logger";

const {
    getApiRequest
} = dao;

const script = {
    execute: () => {
        const apiRequest = getApiRequest();

        // First check if queryParams exists and is an object
        if (!apiRequest || !apiRequest.queryParams || typeof apiRequest.queryParams !== 'object') {
            logger.error("Invalid query parameters: queryParams missing or not an object");
            return {
                isError: true,
                code: 400,
                message: "Invalid query parameters",
                data: { error: "Query parameters are missing or invalid" }
            };
        }

        const queryParams = apiRequest.queryParams;
        const ffn = queryParams.ffn;
        const fname = queryParams.fname;
        const lname = queryParams.lname;

        logger.info("Validating input parameters", { ffn, fname, lname });

        if (!ffn) {
            logger.error("Missing required parameter: ffn");
            return {
                isError: true,
                code: 400,
                message: "Missing required parameter: ffn",
                data: { error: "FFN is required" }
            };
        }

        if (!fname) {
            logger.error("Missing required parameter: fname");
            return {
                isError: true,
                code: 400,
                message: "Missing required parameter: fname",
                data: { error: "First name is required" }
            };
        }

        if (!lname) {
            logger.error("Missing required parameter: lname");
            return {
                isError: true,
                code: 400,
                message: "Missing required parameter: lname",
                data: { error: "Last name is required" }
            };
        }

        return {
            ffn: ffn,
            fname: fname,
            lname: lname,
            isValid: true
        };
    }
};

export {
    script as default
}
