API request (http_write) block

The http_write block sends data to an external HTTP API endpoint using OAuth-based authentication as a destination block in a Connect+ dataflow. It supports rate limiting, configurable retry logic, and response parsing. The block is typically used to post process data to Capillary or third-party APIs.

When to use this block

Use this block when your dataflow needs to deliver data to an HTTP API — for example, posting transactions to the Capillary Transaction v2 API.

Prerequisites

Before configuring this block, make sure you have:

OAuth client key and secret
The API endpoint path
The HTTP method required by the API (POST or PUT)

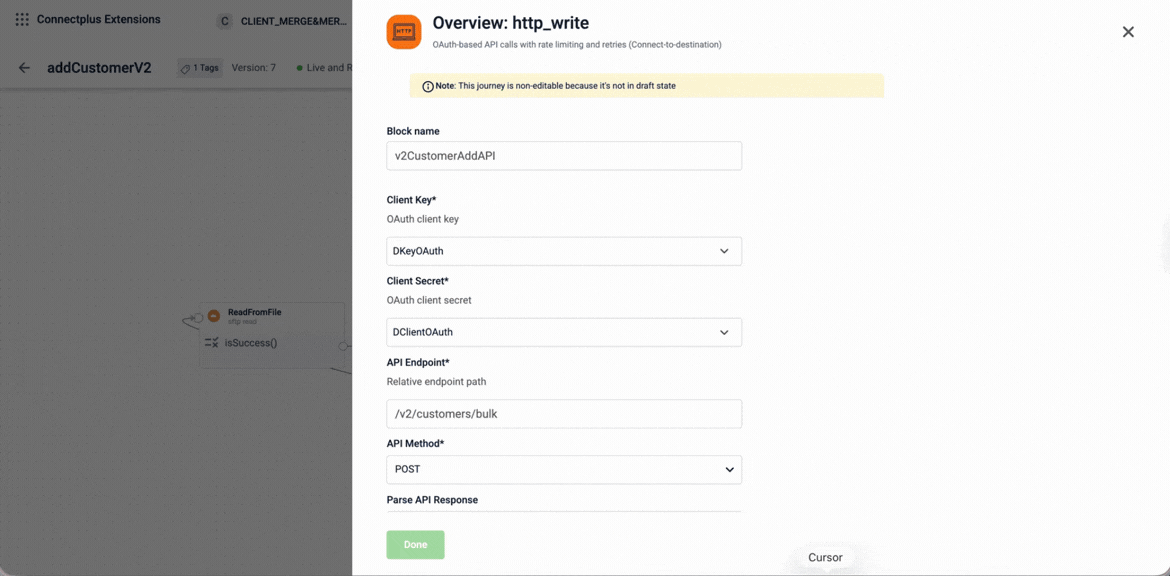

Standard properties

Field name	Required	Description
Block name	Yes	A name for the block instance. The name must be alphanumeric. There is no character limit.
Client Key	Yes	The OAuth client key used for authentication. Select the client key from the dropdown. The list shows configurations created in the Extension Configuration section of the Dev Console.
Client Secret	Yes	The OAuth client secret used for authentication. Select the client secret from the dropdown. The list shows configurations marked as secret in the Extension Configuration section of the Dev Console. Note: When creating a password configuration in the Extension Configuration section of the Dev Console, set `Is Secret` to make it available in the dropdown.
API Endpoint	Yes	The relative endpoint path of the API to call. For example, `/v2/transactions/bulk`. For Neo endpoints, use the format `/x/neo/<neo_dataflow_name>`.
API Method	Yes	The HTTP method used to call the API. Select `POST` or `PUT` from the dropdown. Default value: `POST`.
Parse API Response	No	Parses the API response after each request and extracts specific values using the Parse path map. Select `true` to extract values from the response. Select `false` to skip response parsing. When set to `true`, the parse path map defines which fields to extract from the response: status_code — the error code returned by the API error_message — the error description entity_id — the ID of the created or updated record Default value: `true`. Set the value to `false` for Neo APIs.

Advanced properties

⚠️ Advanced properties for OAuth HTTP API Call. Make changes only if you know what you are doing.

Field name	Required	Description
API Base URL	Yes	The base URL of the API. You can use the default value. If you enter a URL, do not include a trailing `/`. Default value: `{intouch_url}`.
OAuth Base URL	Yes	The base URL used to obtain the OAuth token. You can use the default value. If you enter a URL, do not include a trailing `/`. Default value: `{intouch_url}`.
Bulk Support	Yes	Determines whether bulk API calls are supported. Select from the dropdown. Select `false` when the target API expects individual objects. Select `true` when the target API expects an array.Default value: `true`.
Request Split Path	Yes	The JSONPath expression used to split outgoing requests. Default value: `$.*`.
Response Split Path	Yes	The JSONPath expression used to split API responses. Default value: `$.*`.
Parse Path Map	Yes	The JSONPath map used to parse API responses. Default value: `{"status_code":"$.[errors']..code","error_message":"$.[errors']..r..."}`.
Recoverable Error Codes	No	Comma-separated HTTP status codes that trigger a retry. Default value: `521,502,503,504`.
Yielding Error Codes	No	Comma-separated HTTP status codes that cause the block to yield and wait before retrying. Default value: `429`.
Max Retries	No	The maximum number of retry attempts on failure. Default value: `3`.
Additional Headers	No	Additional HTTP headers to include in the API request, entered as a JSON object. For example, `{"X-Custom-Header": "value"}`.
Rate	Yes	The number of flow files processed per time period. Default value: `1000`.
Time Period	Yes	The duration of the rate limiting time window. Default value: `1`.
Time Unit	Yes	The time unit for the rate limiting period. Select `SECONDS`, `MINUTES`, or `HOURS` from the dropdown. Default value: `MINUTES`.
